EASY leverages ProLASER’s extensive expertise in industrial LASER welding generators, particularly in chain production, where perfect stability, high speed, immense power, and total reliability are crucial.

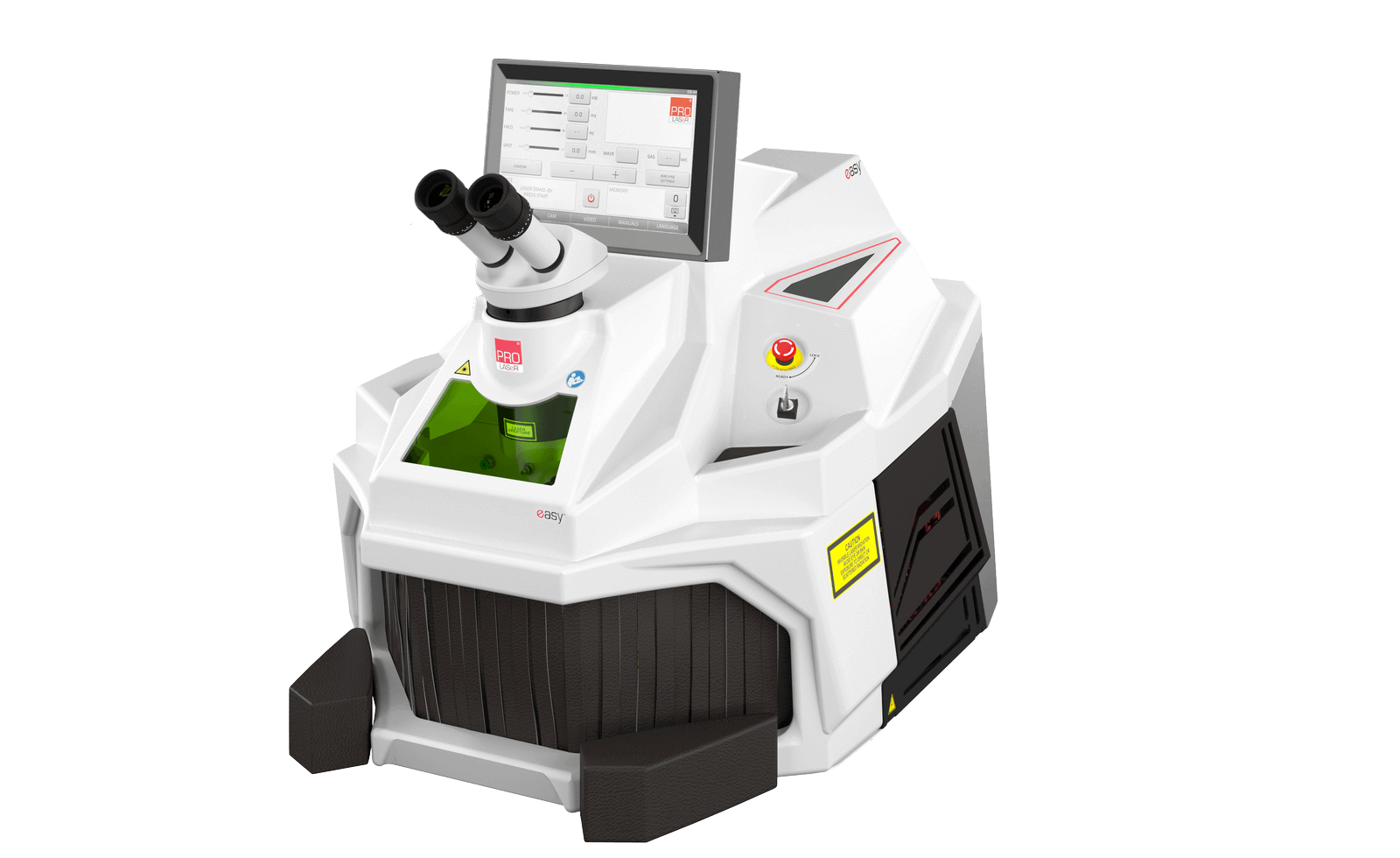

As a descendant of automatic chain welders, ProLASER’s bench welder EASY is engineered to perform at the highest levels, delivering exceptional results even under the most extreme conditions, without compromise. Tailored for applications demanding power, precision, and the endurance to handle the most intense work cycles, EASY is crafted to address precious metalworking challenges, providing a robust and dependable solution for the jewelry industry.
Available Versions of EASY
| Feature | EASY-1 | EASY-2 | EASY-3 | EASY-3 “S” |
|---|---|---|---|---|
| LASER Source | Nd: YAG | Nd: YAG | Nd: YAG | Nd: YAG |
| Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
| Average Power | 95W | 100W | 110W | 140W |
| Peak Power | 7.5kW | 9.0kW | 10kW | 10kW |
| Max Energy | 150 Joule | 180 Joule | 200 Joule | 250 Joule |
| Pulse Frequency | up to 30Hz | up to 30Hz | up to 30Hz | up to 50Hz |
| Pulse Duration | 0.1 ÷ 20 mS | 0.1 ÷ 20 mS | 0.1 ÷ 20 mS | 0.1 ÷ 25 mS |
| Spot Dimension | 0.2 ÷ 2.0mm (0.1mm Optional) | |||
| External Control | 10” Color TouchScreen, Joystick | |||
| Max Working Temp. | 39°C | 39°C | 39°C | 39°C |
| Power Requirements | 1-Ph, 220/230 VAC, 50/60 Hz, 10A | 1-Ph, 220/230 VAC, 50/60 Hz, 10A | 1-Ph, 220/230 VAC, 50/60 Hz, 10A | 1-Ph, 220/230 VAC, 50/60 Hz, 16A |
| Cooling System | Forced Air & Double Radiator 6L | |||
| Size (W x D x H) | W 57 x D 92 x H 66 cm | |||
| Net Weight | 49 Kg | 49 Kg | 49 Kg | 52 Kg |
